Domains

A Domain is a logical container for a collection of related Workloads within a Platform and is further subdivided by Environment. Workloads can be added to whatever Domain suits the business, reporting, or development needs of your organization. A Domain consists of one or more Environments, e.g. dev, stage, and prod, which are used to support different stages of a Workload's lifecycle.

Domain

Domains are loosely modeled after the notion of Domain-Driven Design (DDD). While Konfigurate does not take a particularly strong stance on DDD or how you structure Workloads, it does encourage the use of APIs to connect services versus sharing databases between them. This is a best practice that Konfigurate embraces because it reduces coupling which makes it easier to evolve services independently. A key aspect of this grouping will make certain tasks harder (though not necessarily impossible), on purpose, such as sharing a database between Domains. It also promotes more durable, product-aligned teams who own different parts of a system.

Domain-Driven Design

Domain-Driven Design (DDD) is a software development approach that focuses on modeling software closely around the business domain, using collaboration between developers and domain experts to ensure the software aligns with the business's needs.

Like Platforms, Domains play a critical role in Konfigurate's security and governance story. They allow us to assign permissions to different teams within a Platform. For example, if we have an Ecommerce Platform, we may have an Ecommerce group we grant basic permissions to at the Platform level, then specific Ecommerce teams may have ownership or elevated access within their respective Domains. We can also restrict which cloud services and APIs are available at the Domain level.

The Konfigurate hierarchy that Platforms and Domains provide facilitates a powerful way to enforce enterprise standards for a large organization while allowing for a high degree of flexibility and autonomy for a small organization. Basically, it allows for governance when you need it (and autonomy when you don't). This is particularly valuable for organizations with regulatory or compliance requirements, but it's equally valuable for companies wanting to enforce a "golden path"—that is, an opinionated and supported way of building something within your organization. It supports a DevOps model with significantly more standardization, structure, and efficiency.

Domains comprise several different resources which are created and managed by the Control Plane:

A Domain GCP folder which houses a project for each of the Domain's Environments
GCP projects for each Environment
A Domain CI/CD Service Account
A Domain GitLab group which houses the repositories for Domain Workloads
GitLab CI/CD variables set on the Domain group to support Workload Identity Federation
GitLab SAML group links which map identity provider groups specified on the Domain to GitLab roles
Environments, which in turn create Domain-Environment Service Accounts

The state of these items, along with the overall status of the Domain, can be viewed in the Konfigurate UI, as shown below.

Domain Details

Domains are managed declaratively using YAML definitions. These definitions live in the Control Plane repository and specify metadata and configuration for the Domain. This configuration includes a number of things:

Display name of the Domain
Environments (if not specified, uses the Platform's defaults)
Cloud services to enable (restricted by Platform's allowed list) or disable if relying on the Platform's defaults list (see here)
Group access management

Create a Domain

Domains are created via GitOps. When a Domain YAML definition is committed to the Control Plane's main branch, Konfigurate creates the Domain and all of its associated resources. This YAML can be created directly or using either the Konfigurate UI or Konfigurate CLI.

Below is an example demonstrating how to create a Domain which has dev, stage, and prod environments, enables several GCP services, and sets group permissions.

Refer to the Domain spec for the complete set of Domain configurations.

YAML

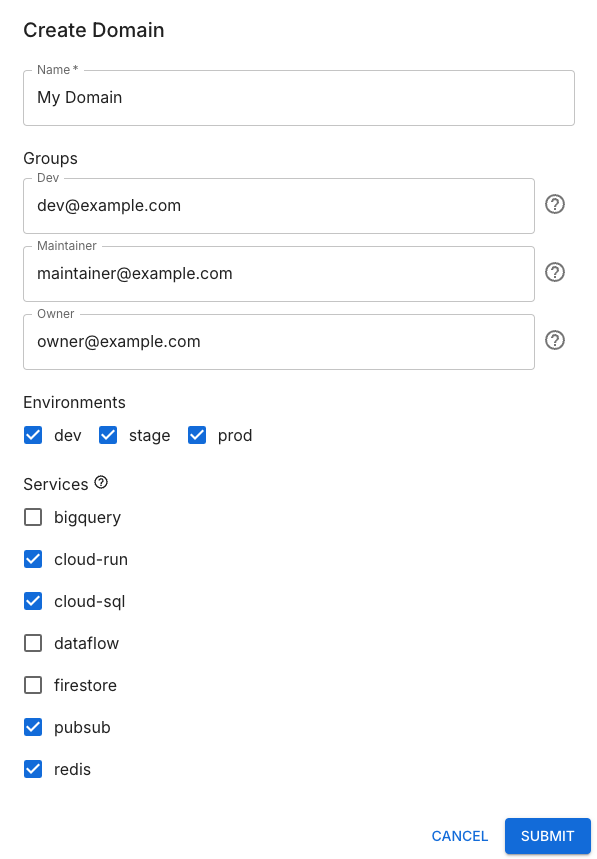

Konfigurate UI
Konfigurate CLI

You can create a Domain by applying the YAML definition to the Control Plane repository.

apiVersion: konfig.realkinetic.com/v1alpha8
kind: Domain
metadata:
  name: [DOMAIN ID]
  namespace: konfig-control-plane
  labels:
    konfig.realkinetic.com/platform: [PLATFORM ID]
spec:
  domainName: [DOMAIN DISPLAY NAME]
  gcp:
    envs:
    - label: dev
    - label: stage
    - label: prod
    services:
      enabled:
        - cloud-run
        - cloud-sql
        - pubsub
        - redis
  groups:
    dev:
      - dev@example.com
    maintainer:
      - maintainer@example.com
    owner:
      - owner@example.com

Ensure the Konfigurate CLI is installed and initialized.
Run the konfig domains create command:

konfig domains create \
  --envs=dev,stage,prod \
  --enabled-services=cloud-run,cloud-sql,pubsub,redis \
  --dev=dev@example.com \
  --maintainer=maintainer@example.com \
  --owner=owner@example.com \
  [PLATFORM ID] [DOMAIN DISPLAY NAME]

This will create a merge request in the Control Plane repository. Once merged, the Domain will be created.

List Domains

The available Domains within a Platform can be viewed either with the Konfigurate UI or Konfigurate CLI.

Konfigurate UI
Konfigurate CLI

Navigate to the homepage of the Konfigurate UI.
Navigate to the Platform you want to list Domains for by clicking the Platform in either the side navigation or in the main viewport.

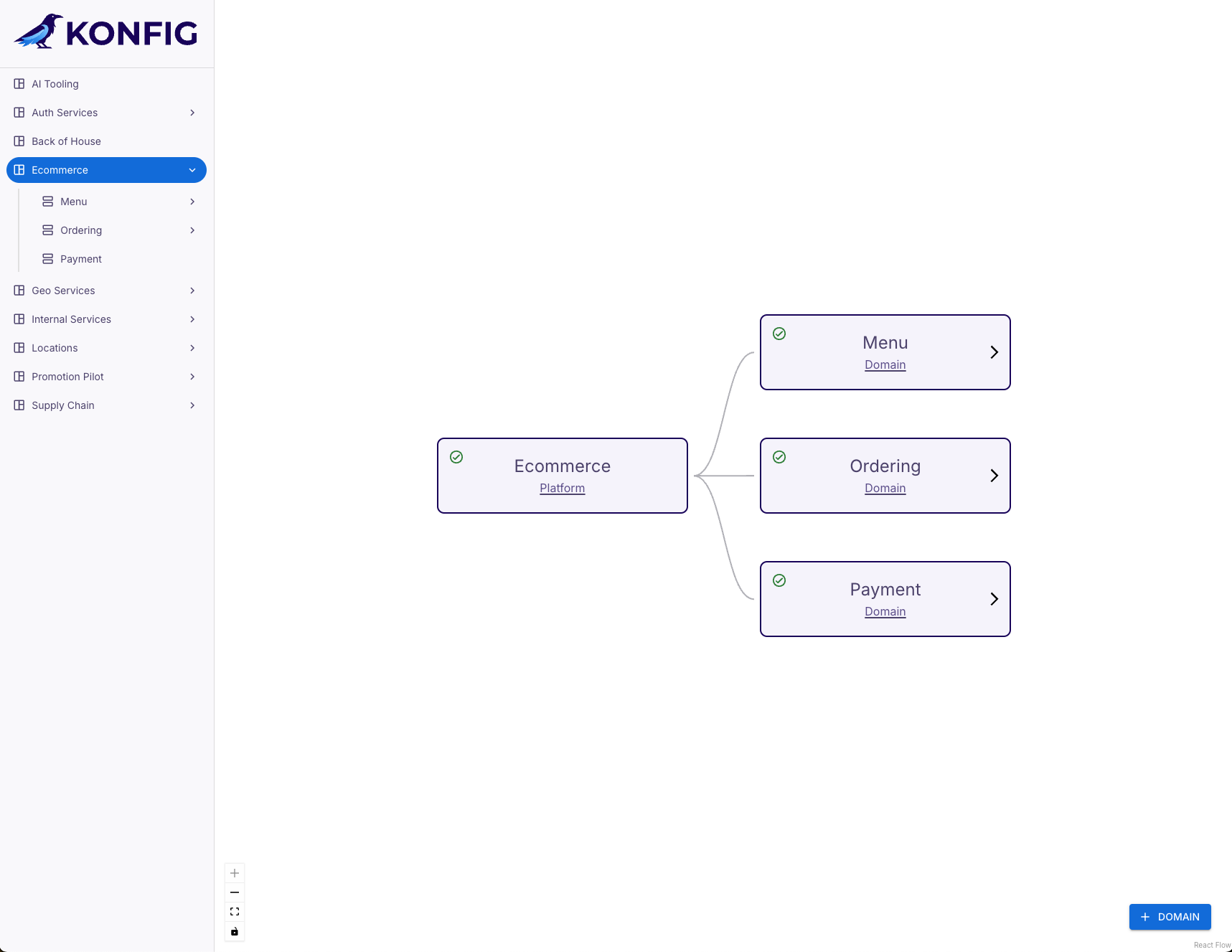

Domains will be displayed in both the side navigation and in the main viewport.

Platforms

Ensure the Konfigurate CLI is installed and initialized.
Run the konfig domains list command:

konfig domains list [PLATFORM ID]

The response looks like the following example:

ID        NAME      ENVIRONMENTS  CREATED                        READY
menu      Menu      dev           2024-06-07 20:53:55 +0000 UTC  TRUE
ordering  Ordering  dev           2024-06-07 19:58:50 +0000 UTC  TRUE
payment   Payment   dev           2024-06-07 19:58:50 +0000 UTC  TRUE

Get Domain Details

Metadata for a Domain can be retrieved either with the Konfigurate UI or Konfigurate CLI.

Konfigurate UI
Konfigurate CLI

Navigate to the homepage of the Konfigurate UI.
Navigate to the Platform containing the desired Domain by clicking the Platform in either the side navigation or in the main viewport.
Locate the desired Domain in the main viewport and click the status icon.

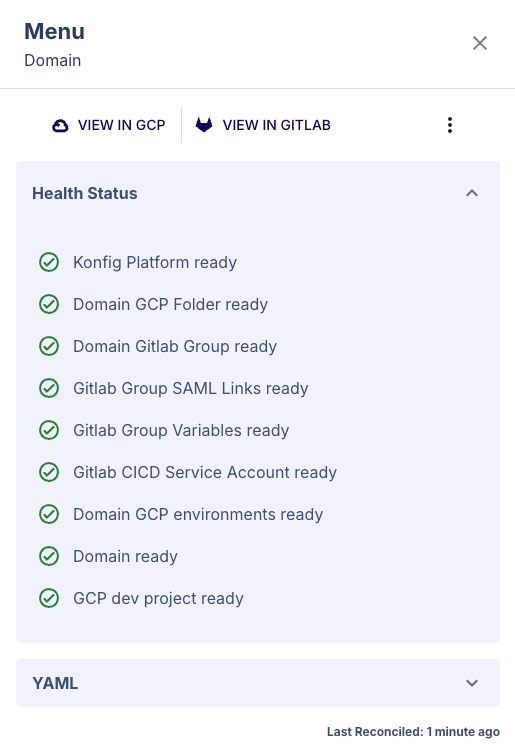

This will expand a sidebar containing information about the Domain such as links to the Domain in GitLab and GCP as well as its source definition, the Domain status, and the Domain's YAML applied to the Control Plane.

Platform Details

Ensure the Konfigurate CLI is installed and initialized.
Run the konfig domains describe command:

konfig domains describe [PLATFORM ID] [DOMAIN ID]

The response looks like the following example:

apiVersion: konfig.realkinetic.com/v1alpha8
kind: Domain
metadata:
  name: menu
  creationTimestamp: 2024-06-07T20:53:55Z
  labels:
    konfig.realkinetic.com/platform: ecommerce
spec:
  domainName: Menu
  gcp:
    createProjects: true
    enableWorkloadIdentity: true
    manageFolder: true
    envs:
    - label: dev
  gitlab:
    manageCIVars: true
    manageGroup: true
    serviceAccountNameVar: GCP_SA_EMAIL
  groups:
    dev:
    - ecomm-menu-devs@realkinetic.com
    maintainer:
    - ecomm-menu-maintainers@realkinetic.com
    owner:
    - gitlab-owners@realkinetic.com
status:
  conditions:
  - lastTransitionTime: 2024-06-11T22:33:35.443387Z
    lastUpdateTime: 2024-08-09T15:55:52.528737Z
    message: Konfigurate Platform ready
    reason: Ready
    status: "True"
    type: Platform
  - lastTransitionTime: 2024-06-11T22:33:35.443422Z
    lastUpdateTime: 2024-08-09T15:55:52.528798Z
    message: Domain GCP Folder ready
    reason: Ready
    status: "True"
    type: DomainFolder
  - lastTransitionTime: 2024-06-11T22:33:35.443451Z
    lastUpdateTime: 2024-08-09T15:55:52.528854Z
    message: Domain Gitlab Group ready
    reason: Ready
    status: "True"
    type: GitlabGroup
  - lastTransitionTime: 2024-06-11T22:33:35.443483Z
    lastUpdateTime: 2024-08-09T15:55:52.528909Z
    message: Gitlab Group SAML Links ready
    reason: Ready
    status: "True"
    type: GitlabGroupSAML
  - lastTransitionTime: 2024-06-11T22:33:35.443519Z
    lastUpdateTime: 2024-08-09T15:55:52.528961Z
    message: Gitlab Group Variables ready
    reason: Ready
    status: "True"
    type: GitlabCIVariables
  - lastTransitionTime: 2024-06-11T22:33:35.443571Z
    lastUpdateTime: 2024-08-09T15:55:52.529016Z
    message: Gitlab CICD Service Account ready
    reason: Ready
    status: "True"
    type: DomainGitlabServiceAccount
  - lastTransitionTime: 2024-06-11T22:33:35.44364Z
    lastUpdateTime: 2024-08-09T15:55:52.529076Z
    message: Domain GCP environments ready
    reason: Ready
    status: "True"
    type: GCPEnvironments
  - lastTransitionTime: 2024-06-11T22:33:35.443751Z
    lastUpdateTime: 2024-08-09T15:55:52.529298Z
    message: Domain ready
    reason: Ready
    status: "True"
    type: Ready
  - lastTransitionTime: 2024-06-11T22:34:14.04908Z
    lastUpdateTime: 2024-08-09T15:55:52.529139Z
    message: GCP dev project ready
    reason: Ready
    status: "True"
    type: GCPEnvironmentDev
  state:
    gcp:
      domainFolderId: "341116298313"
      domainServiceAccount:
        email: menu-gitlab@konfig-control-plane-mr91es6om.iam.gserviceaccount.com
        name: menu-gitlab
        namespace: konfig-control-plane
      projectResources:
      - env: dev
        name: menu-dev
        namespace: konfig-control-plane
        reason: Ready
        status: "True"
      projects:
      - env: dev
        id: menu-dev-xahlq
        number: "739697333575"
        resource_name: menu-dev
      services:
      - pubsub
      - redis
      - cloud-run
      - cloud-sql
      - firestore
    gitlab:
      group:
        gcpSAVarName: GCP_SA_EMAIL
        id: "88529853"
        path: realkinetic/konfig-demo/ecommerce/menu
        saml_links:
          dev:
          - ecomm-menu-devs
          maintainer:
          - ecomm-menu-maintainers
          owner:
          - gitlab-owners
    lastReconciled:
      generation: 24839
      timestamp: 2024-08-09T15:55:52.528633
    ready: true

Domain Custom Resource Definition

v1alpha8

Name	Type	Description	Required
apiVersion	string	konfig.realkinetic.com/v1alpha8	true
kind	string	Domain	true
metadata	object	Refer to the Kubernetes API documentation for the fields of the `metadata` field.	true
spec	object		false
status	object		false

Domain.spec

Name	Type	Description	Required
domainName	string	Human readable name for the Domain. This must be unique within the Platform because the GCP Folder and Gitlab Group will have this name. Defaults to metadata.name.	true
gcp	object	Default: map[]	false
gitlab	object	Default: map[]	false
groups	object		false

Domain.spec.gcp

Name	Type	Description	Required
createProjects	boolean	GCP Projects should be managed by Konfigurate. Default: true	false
enableWorkloadIdentity	boolean	Setup Workload Identity Federation mapping (and restriction to) the Domain's Gitlab CICD Service Account. Default: true	false
envs	[]object	The (authoritative) set of enviornments to create for this Domain. If not set, the Platform's defaultEnvs will be used.	false
manageFolder	boolean	GCP Folder should be managed by Konfigurate. Default: true	false
services	object		false
workloadIdentity	object	Default: map[]	false

Domain.spec.gcp.envs[index]

Name	Type	Description	Required
label	enum	Enum: dev, stage, prod	true
name	string		false
namespace	string		false
subnetName	string	The name of the subnet to associate with this environment.	false

Domain.spec.gcp.services

Name	Type	Description	Required
disabled	[]enum	List of services to disable for this Domain. This is used to remove services from the Platform's defaults (spec.gcp.services.defaults) list for this Domain.	false
enabled	[]enum	The authoritative list of services to enable for this Domain. This is restricted by the Platform's spec.gcp.services.allowed list. Defaults to the Platform's spec.gcp.services.defaults if not set. Default: [cloud-run cloud-sql pubsub redis firestore bigquery]	false

Name

Type

Description

Required

disabled

[]enum

List of services to disable for this Domain. This is used to remove services from the Platform's defaults (spec.gcp.services.defaults) list for this Domain.

false

enabled

[]enum

The authoritative list of services to enable for this Domain. This is restricted by the Platform's spec.gcp.services.allowed list. Defaults to the Platform's spec.gcp.services.defaults if not set.

Default: [cloud-run cloud-sql pubsub redis firestore bigquery]

false

Domain.spec.gcp.workloadIdentity

Name	Type	Description	Required
enabled	boolean	Setup Workload Identity Federation mapping (and restriction to) the Domain's Gitlab CICD Service Account. Default: true	false

Name

Type

Description

Required

enabled

boolean

Setup Workload Identity Federation mapping (and restriction to) the Domain's Gitlab CICD Service Account.

Default: true

false

Domain.spec.gitlab

Name	Type	Description	Required
manageCIVars	boolean	Gitlab CI Vars should be managed by Konfigurate. Default: true	false
manageGroup	boolean	Gitlab Group should be managed by Konfigurate. Default: true	false
serviceAccountNameVar	string	The Gitlab project CICD variable that will store the GCP IAM Service Account name (email). Default: GCP_SA_EMAIL	false

Name

Type

Description

Required

manageCIVars

boolean

Gitlab CI Vars should be managed by Konfigurate.

Default: true

false

manageGroup

boolean

Gitlab Group should be managed by Konfigurate.

Default: true

false

serviceAccountNameVar

string

The Gitlab project CICD variable that will store the GCP IAM Service Account name (email).

Default: GCP_SA_EMAIL

false

Domain.spec.groups

Name	Type	Description	Required
dev	[]string	If set, this group will be added to the dev GCP Project as 'Editor', and 'Viewer' to non-dev Projects. It will be added to the Gitlab Group as developer.	false
maintainer	[]string	If set, this group will be added to the dev GCP Project as 'Editor', and 'Viewer' to non-dev Projects. It will be added to the Gitlab Group as maintainer.	false
owner	[]string	If set, this group will be added to all GCP Projects as 'Editor'. It will be added to the Gitlab Group as maintainer.	false

Domain.status

Name	Type	Required
gcp	object	false
gitlab	object	false
lastReconciled	object	false
ready	boolean	false

Domain.status.gcp

Name	Type	Required
domainFolderId	string	false
domainServiceAccount	string	false
projectResources	[]object	false

Domain.status.gcp.projectResources[index]

Name	Type	Required
env	string	false
name	string	false
namespace	string	false
reason	string	false
status	string	false

Domain.status.gitlab

Name	Type	Description	Required
group	object		false

Domain.status.gitlab.group

Name	Type	Required
configsProjectId	string	false
gcpSAVarName	string	false
id	string	false
path	string	false

Domain.status.lastReconciled

Name	Type	Description	Required
generation	integer		false
timestamp	string		false

Create a Domain​

List Domains​

Get Domain Details​

Domain Custom Resource Definition​

Domain.spec​

Domain.spec.gcp​

Domain.spec.gcp.envs[index]​

Domain.spec.gcp.services​

Domain.spec.gcp.workloadIdentity​

Domain.spec.gitlab​

Domain.spec.groups​

Domain.status​

Domain.status.gcp​

Domain.status.gcp.projectResources[index]​

Domain.status.gitlab​

Domain.status.gitlab.group​

Domain.status.lastReconciled​

Create a Domain

List Domains

Get Domain Details

Domain Custom Resource Definition

Domain.spec

Domain.spec.gcp

Domain.spec.gcp.envs[index]

Domain.spec.gcp.services

Domain.spec.gcp.workloadIdentity

Domain.spec.gitlab

Domain.spec.groups

Domain.status

Domain.status.gcp

Domain.status.gcp.projectResources[index]

Domain.status.gitlab

Domain.status.gitlab.group

Domain.status.lastReconciled
